PRODUCTS
If you're in a hurry: Use our Express Service! Whether delivery on the desired date, within 48 or even 24 hours – provided material availability. –––>
EXPERIENCE OF EXCELLENCE
Quality made in Germany – for more than 40 years now.
If you want to impress with your work in the long term, you shouldn't settle for 08/15 when it comes to quality. This is just one of the reasons why we at Seeberger are absolute perfectionists in our core competence, the precise cutting, deburring and machining of tubes, and why more than 1,500 national and international customers rely on our know-how.
THE WIDEST RANGE OF DIMENSIONS
We produce product lengths from 2 to 500 mm (0.0779 - 19.685 inch) with diameters ranging from 1 to 105 mm (0.039 – 4.134 inch) and process wall thicknesses from 0.2 mm (0.008 inch) up to a solid material. The use of automated precision saws guarantees burr-free edges, and tolerances up to ± 0.05 mm (0.002 inch).
ALL MATERIALS CAN BE PROCESSED
We can process a wide variety of materials for you on our state-of-the art production lines, e.g. steel, stainless steel, aluminium, copper or brass, and take care of a wide range of tube and surface processing for you. This is what we mean by service from a single source.
SYNERGIES THROUGH COOPERATION
The high purchasing volume of our own tube business enables us to obtain the best conditions on the global procurement market, which we pass on to our customers as a clear price advantage. This is another way in which we ensure that you receive the most cost-effective solutions from Seeberger.

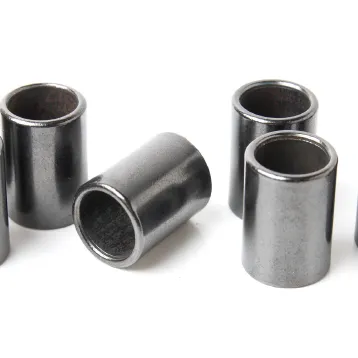

OUR TUBE PRODUCTS
It can't be done is simply not in our vocabulary, always just-in-time!
The precision of our tube products and the reliability of our production convinces customers from a wide range of industries: Whether for the automotive industry, electrical and medical technology, mechanical engineering, the construction and plastics industry or aerospace technology, we supply high-quality tube products precisely tailored to your requirements. And that's not least because we keep putting technical innovation at the (sawing) centre.
Using the fastest and most precise production technology enables us to realise the most precise length requirements with guaranteed repeat accuracy. Permanent checks by various measurement and test systems, ensures automatic correction and rejection at all times when predefined tolerances are exceeded. This not only helps us to save time but also guarantees top quality made by Seeberger.
OUR PROFILE PRODUCTS
Performing well with profiles.
The shortest route to profile products which are literally tailored to your requirements? Contact us! Regardless of whether you provide us with your profiles or we procure them directly - without any additional effort for you - we clarify all the details directly with you. In this way, we ensure that the special requirements of the individual geometry of each profile are incorporated into the range of our precise machining options. To cut a long story short: due to our selective experience, we will also convince you with bespoke pro(file) services.
OUR TUBE PROCESSING
More options. For greater flexibility.
Excellent products are not only made from high-quality tube and raw materials. Completely geared to the requirements of the respective area of application or the end product, we offer you a wide range of services in a wide variety of machining and processing methods.
Widening
Widening
The tube ends can be widened in the dimensional range from 5 to 75 mm (0.197 - 2.953 inch).
Notching
Notching
Up to a wall thickness of 2 mm (0.079 inch) pieces can be cut out on one side of the tube.
Perforating
Perforating
Perforations can be applied to almost any part.
Bordering
Bordering
Bordering means that the edges are doubled over. This process may be applied up to a wall thickness of 1.5 mm (0.059 inch).
Turning
Turning
Outside diameter range from 2 to 100 mm (0.079 - 3.937 inch). Turned parts up to 300 mm (11.811 inch).
Machiningof ends
Machining of ends
Machining operation to remove burr and produce smooth, clean and angular tube ends but also for chamfering and special edge forms of all kind. The dimensional range for the outside diameter is from 8 to 80 mm (0.315 - 3.150 inch).
Chamfering
Chamfering
The tube edges can be chamfered at the ends. Based on experience, we recommend for most applications a rounding of the edges by grinding.
Mitring
Mitring
It is possible to mitre on one side or on both sides starting with an outside diameter of 5 mm (0.197 inch).
Calibrating
Calibrating
The calibration of tubes allows for very tight outside diameter tolerances.
Laser-processing
Laser processing
In one operation it is possible to produce complex contours. This eliminates the need for further processing such as perforating, punching, sawing and milling. Up to outside diameter of 150 mm (5.906 inch), square 120 × 120 mm (4.724 inch). Wall thicknesses steel up to 6 mm (0.236 inch), stainless steel up to 5 mm (0.197 inch) and aluminium up to 4 mm (0.157 inch).
Knurling
Knurling
Knurls may be applied to tubes starting from a wall thickness of 1.5 mm (0.059 inch).
Formingof tube ends
Forming of tube ends
Forming operations to round tubes in one or several steps for a local shaping of form elements of a different kind. The different shapes of forming may be combined with each other.
Slotting
Slotting
Partial and even continuous slotting of tubes.
Punching
Punching
Up to tube diameter of 70 mm (2.756 inch).
Burr removalwith brush
Burr removal with brush
Outside diameter 8 - 50 mm (0.315 - 1.969 inch), length 30 - 300 mm (1.181 - 11.811 inch), wall thickness 1 - 4 mm (0.039 - 0.157 inch). The burr is knocked off by rotating brushes. This deburring process is particularly suited for long parts.
Cleaning
Cleaning
On alkaline base in steam degreasing plants and by ultrasound.
Degreasing
Degreasing
Tubes can be PER-degreased in closed facilities.
Heattreatment
Heat treatment
For the entire range of dimensions we offer heat treatments like Stress relief annealing, soft-annealing, standard annealing.
Centrifugalforce grinding
Centrifugal force grinding
Outside diameter 2 - 30 mm (0.079 - 1.181 inch), length 2 - 50 mm (0.079 - 1.969 inch), wall thickness 0.2 mm (0.008 inch), to solid material. Centrifugal force grinding is a particularly intensive way of grinding.
Washing
Washing
Outside diameter 5 - 100 mm (0.197 - 3.937 inch), length 2 - 300 mm (0.079 - 11.811 inch), wall thickness 0.2 mm (0.008 inch), to solid material. Surface impurities are removed in one washing operation.
Burr removalby grinding
Burr removal by grinding
Outside diameter 2 - 100 mm (0.079 - 3.937 inch), length 2 - 250 mm (0.079 - 9.843 inch), wall thickness 0.2 mm (0.008 inch), to solid material. Grinding rounds sharp edges. The burr is doubled over, the parts are not burr-free.
OUR SURFACE TREATMENT
Anything but superficial. Finish with depth.
Regardless of whether you need products with special protection against wear and corrosion for your application, want to improve their electrical conductivity or literally make the material shine, we don't just turn a piece of chrome, we offer you all common surface treatments.
Corrosion protection
- Bonderising
- Browning
- Hot-dip tinning
- Hot-dip galvanising
- High-temperature galvanising
- Passivating
- Phosphatising
- Zinc plating
- Zinc coating with lamellar structure
(e.g. Dacromet,
Delta-Protekt,
Geomet, Microcor) - Zinc-iron
- Zinc-nickel
Decorative look
- Anodising
- Colour anodising
- CDP-coating
- Painting
- Polishing
- Electrolytic polishing
- Grinding
- Chrome plating
- Gold plating
- Copper plating
- Brass plating
- Nickel plating
- Silver plating

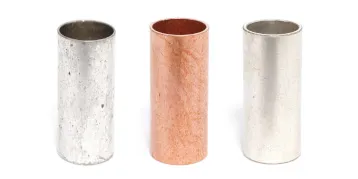

Electricallyconductive coatings
- Hot-dip tinning
- Copper plating
- Tin plating
SOLID MATERIAL
With us, you can draw on our plentiful resources.
Our claim: always the perfect cut, for any material thickness! That's why we are happy to literally go at full steam when it comes to machining solid material. Whether individual or bundle cuts: Water-cooled, innovative servo technology makes it possible to separate the material with infinitely adjustable sawing power and the shortest sawing cycle of less than a second. Cutting speed, tool clamping pressure and saw blade vibration are calculated and monitored throughout the entire manufacturing process. In this way, we guarantee optimal results, maximum reliability and cost-efficiency, and all this not only for large quantities, but also for the smallest batch series.
SEEBERGER CONTRACT SAWING
Cutting-edge know-how for a rewarding cut.
We will saw anything for you, that's what we specialise in. But more than that: we want you to do even better (also financially) in precision sawing work. Based on our reliable experience, we therefore assume the full risk. Only Seeberger can offer you that.
Fast quotes and short deadlines are just as much a matter of course for us as production at fixed prices. And thanks to a high level of machine utilisation and cost-effective bundle sawing, we can offer you the best conditions. This is how we make sure that you always make a good cut.
OUR TUBE TRADE
Big warehouse full of everything you need!

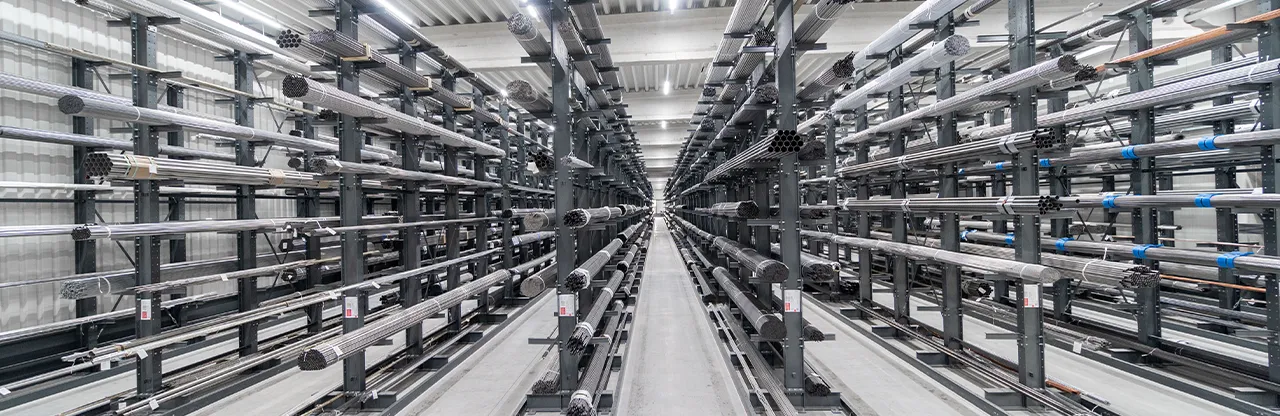

With a storage area of 5,000 square metres, we offer you permanent access to over 2,500,000 metres of tube – spread over 2,000 items in a wide variety of dimensions, designs and materials.
We work exclusively with Europe's leading tube mills and audited partners in order to always be able to offer you top quality. No matter how large the desired order volume may be or if you are in a hurry: We offer you inexpensive and short-term solutions so that you are never left out in the cold when it comes to tubes.
Seamless precision steel tubeSeamless precision steel tube
Outside diameter: from 4.00 to 160.00 mm (0.157 - 6.299 inch)
Wall thickness: from 0.50 to 20.00 mm (0.020 - 0.787 inch)
Materials: E235
Welded, drawn precision steel tubeWelded, drawn precision steel tube
Outside diameter: from 3.20 to 150.00 mm (0.126 - 5.906 inch)
Wall thickness: from 0.50 to 8.00 mm (0.020 - 0.315 inch)
Materials: E235
Welded precision steel tubeWelded precision steel tube
Outside diameter: from 6.00 to 159.00 mm (0.236 - 6.260 inch)
Wall thickness: from 0.70 to 5.00 mm (0.028 - 0.197 inch)
Materials: E195
Welded, cold formed hydraulic line tubeWelded, cold formed hydraulic line tube
Outside diameter: from 4.00 to 100.00 mm (0.157 - 3.937 inch)
Wall thickness: from 0.50 to 10.00 mm (0.020 - 0.394 inch)
Materials: E235
Square tube from steelSquare tube from steel
Outside diameter: from 10 x 10 to (0.394 x 0.394 inch) 120 x 80 mm (4.724 x 3.150 inch)
Wall thickness: from 1.00 to 5.00 mm (0.039 - 0.197 inch)
Materials: E235
Oval tube from steelOval tube from steel
Outside diameter: from 20 x 10 (0.787 x 0.394 inch) to 100 x 25 mm (3.937 x 0.984 inch)
Wall thickness: from 1.00 to 2.50 mm (0.039 - 0.098 inch)
Materials: E195
Seamless steel tube with standard wallSeamless steel tube with standard wall
Outside diameter: from 10.20 to 159.00 mm (0.402 - 6.260 inch)
Wall thickness: from 1.60 to 4.50 mm (0.063 - 0.177 inch)
Materials: P235
Welded steel tubeWelded steel tube
Outside diameter: from 10.20 to 159.00 mm (0.402 - 6.260 inch)
Wall thickness: from 1.40 to 11.00 mm (0.055 - 0.433 inch)
Materials: P235
Seamless or welded threaded tubeSeamless or welded threaded tube
Outside diameter: from 17.20 to 114.30 mm (0.677 - 4.500 inch)
Wall thickness: from 3.25 to 5.40 mm (0.128 - 0.213 inch)
Materials: S195
Seamless stainless steel tubeSeamless stainless steel tube
Outside diameter: from 4.00 to 159.00 mm (0.157 - 6.260 inch)
Wall thickness: from 0.50 to 11.13 mm (0.020 - 0.438 inch)
Materials: 1.4301, 1.4435, 1.4462, 1.4541, 1.4571
Welded stainless steel tubeWelded stainless steel tube
Outside diameter: from 3.00 to 159.00 mm (0.118 - 6.260 inch)
Wall thickness: from 0.10 to 4.00 mm (0.004 - 0.157 inch)
Materials: 1.4301, 1.4304, 1.4541, 1.4571
Stainless steel tube with high corrosion resistanceStainless steel tube with high corrosion resistance
Outside diameter: from 10.29 to 355.60 mm (0.405 - 14.000 inch)
Wall thickness: from 2.00 to 8.71 mm (0.079 - 0.343 inch)
Materials: 1.4462, 1.4539
Seamless heat resistant stainless steel tubeSeamless heat resistant stainless steel tube
Outside diameter: from 6.00 to 168.30 mm (0.236 - 6.626 inch)
Wall thickness: from 1.00 to 6.02 mm (0.039 - 0.237 inch)
Materials: 1.4841
Welded stainless steel tube for beverage linesWelded stainless steel tube for beverage lines
Outside diameter: from 12.00 to 154.00 mm (0.472 - 6.063 inch)
Wall thickness: from 1.00 to 2.00 mm (0.039 - 0.079 inch)
Materials: 1.4301, 1.4404
Square stainless steel tubeSquare stainless steel tube
Outside diameter: from 10 x 10 (0.394 x 0.394 inch) to 250 x 150 mm (9.843 x 5.906 inch)
Wall thickness: from 1.00 to 10.00 mm (0.039 - 0.394 inch)
Materials: 1.4301, 1.4404, 1.4571
Rustproof construction tubeRustproof construction tube
Outside diameter: from 10.00 to 168.30 mm (0.394 - 6.626 inch)
Wall thickness: from 1.00 to 4.00 mm (0.039 - 0.157 inch)
Materials: 1.4301
Decorative tubeDecorative tube
Outside diameter: from10.00 to 88.90 mm (0.394 - 3.500 inch)
Wall thickness: from 1.00 to 4.00 mm (0.039 - 0.157 inch)
Materials: 1.4301
Capillary tubeCapillary tube
Outside diameter: from 0.40 to 5.00 mm (0.016 - 0.197 inch)
Wall thickness: from 0.05 to 1.50 mm (0.002 - 0.059 inch)
Materials: 1.4301, 1.4401, 1.4435, 1.4541, 1.4571
Brass tubeBrass tube
Outside diameter: from1.00 to 120.00 mm (0.039 - 4.724 inch)
Wall thickness: from 0.10 to 30.00 mm (0.004 - 1.181 inch)
Materials: CuZn37, CuZn39
Square brass tubeSquare brass tube
Outside diameter: from 3.5 x 3.5 (0.138 x 0.138 inch) to 80 x 80 mm (3.150 x 3.150 inch)
Wall thickness: from 0.30 to 3.00 mm (0.012 - 0.118 inch)
Materials: CuZn37
Aluminium tubeAluminium tube
Outside diameter: from 4.00 to 120.00 mm (0.157 - 4.724 inch)
Wall thickness: from 0.50 to 30.00 mm (0.020 - 1.181 inch)
Materials: Al Cu MgPb, Al Mg 1, Al Mg 3, Al Mg 4.5Mn, Al Mg 5, Al Mg Si 0.5, Al Mg Si 1, Al Mg Si Pb, Al Zn 4.5 Mg 1, Alu 99.5%
Square aluminium tubeSquare aluminium tube
Outside diameter: from 10 x 10 (0.394 x 0.394 inch) to 200 x 50 mm (7.874 x 1.969 inch)
Wall thickness: from 1.00 to 6.00 mm (0.039 - 0.236 inch)
Materials: Al Mg Si 0.5
Copper tubeCopper tube
Outside diameter: from 2.00 to 120.00 mm (0.079 - 4.724 inch)
Wall thickness: from 0.30 to 12.50 mm (0.012 - 0.492 inch)
Materials: SF-CU
Square copper tubeSquare copper tube
Outside diameter: from 4 x 4 (0.157 x 0.157 inch) to 35 x 10 mm (1.378 x 0.394 inch)
Wall thickness: from 1.00 to 4.00 mm (0.039 - 0.157 inch)
Materials: SF-CU
Plastic tubePlastic tube
Outside diameter: from 6.00 to 90.00 mm (0.236 - 3.543 inch)
Wall thickness: from 1.00 to 10.00 mm (0.039 - 0.394 inch)
Materials: PVC-U
NO COMPROMISE WHEN IT COMES TO TOLERANCES
You may judge us by this.
By using our automated precision saws, we not only guarantee burr-free edges, but also tolerances of up to ± 0.05 millimetres. By the way, a hair is just as thick – so we literally work "to a hair".
